项目

内容

产品编号

V01-RK3588S

版本号

V1.0

发布日期

2026-3-29

生效日期

2026-3-29

文件状态

编修

文件拟定

王志海

文件审核




保密类型

公开




版本

发布日期

升级记录

V1.0

2026-3-29

第一次发布







一、产品介绍

RK3588S是瑞芯微高性价比旗舰芯片，采用的是8nm 生产工艺的8核CPU（4核Cortex-A76 +4核Cortex-A55）;支持8K 60HZ视频输出和解码，内部集成6.0 Tops NPU，可以满足大多数终端设备的边缘计算需求。
V01-RK3588S 采用核心板方式，将所有功能接口都外接到DDR4 SO‑DIMM上，方便客户使用和开发。为智能体设备提供高效的方案！

二、规格参数


产品规格

CPU

RK3588S Octo-core, Cortex-A76 and Cortex-A55

频率高达2.4GHz

GPU

Mali-G610 GPU，OpenGL ES 1.1/2.0/3.2，OpenCL 2.2，Vulkan 1.2

内嵌高性能2D加速硬件

DDR

LPDDR4X



4G/8G/16G/可选

NPU

6.0 Tops

OS

Android /Debian /Buildroot/ Ubuntu（用户自己开发）

内置存储器




支持 eMMC5.1，SDIO3.0

16GB/32GB/64G/128G（可选）

接口类型

260‑Pin DDR4 SO‑DIMM

PCIE

PCIE2.0 1Lane*2（与SATA、USB3.0 共用端口）

SATA

SATA3.0*2（与PCIE、USB3.0 共用端口）

USBOTG

Type-c USB3.0+USB2.0 OTG 带DP输出*1

USB Host

USB3.0 Host*1（与PCIE、SATA 共用端口 +USB2.0 Host *2

HDMI

HDMI2.1 @8K*1（与EDP共用端口）

EDP

4Lane*1（与HDMI共用端口）

MIPI TX

D/C PHY *2

MIPI RX

MIPI D/C PHY *1+MIPI DPHY 4Lane*2(可以适配2Lane*4)

SDMMC

SDMMC2.0/3.0 *1

SDIO

SDIO3.0*1

RGMII

RGMII*1

ADC

ADC*4

Uart

Uart TTL *9+Debug*1

PWM

PWM*16

I2C

I2C*9

SPI

SPI*6

I2S

I2S*4

电源

4.0V 3A

整机功耗

10W（MAX）

净重

PCBA：16g

尺寸

69.6 mm  ×  58.21mm

工作温度

-20~60℃

存储温度

-20~70℃

工作湿度

20-85 RH （无冷凝）

存储湿度

5-90 RH （无冷凝）

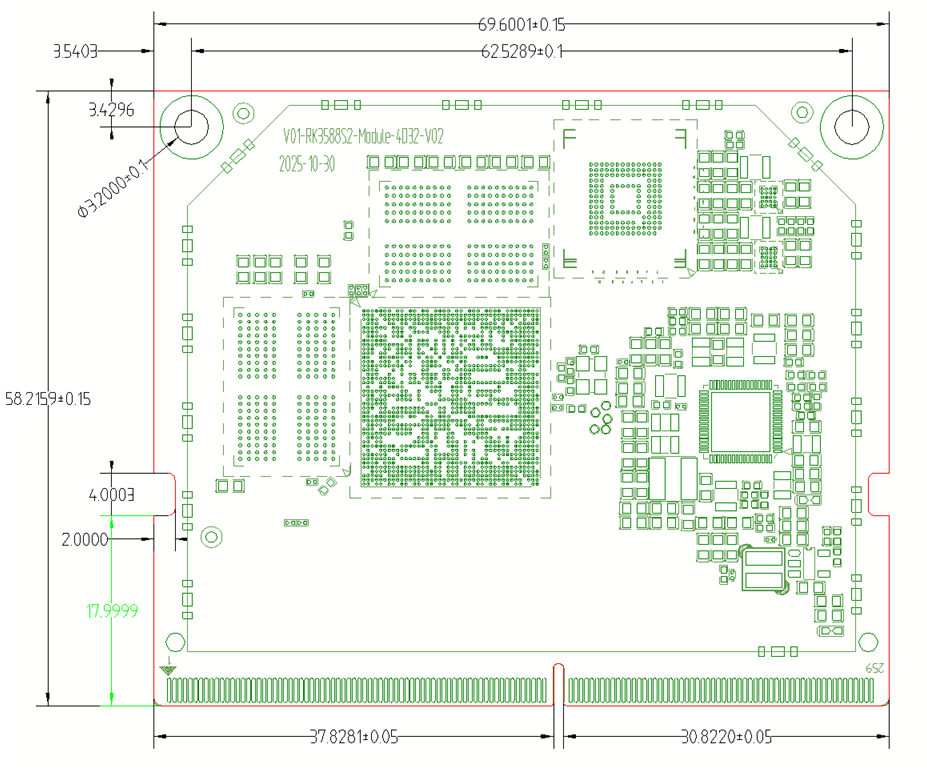

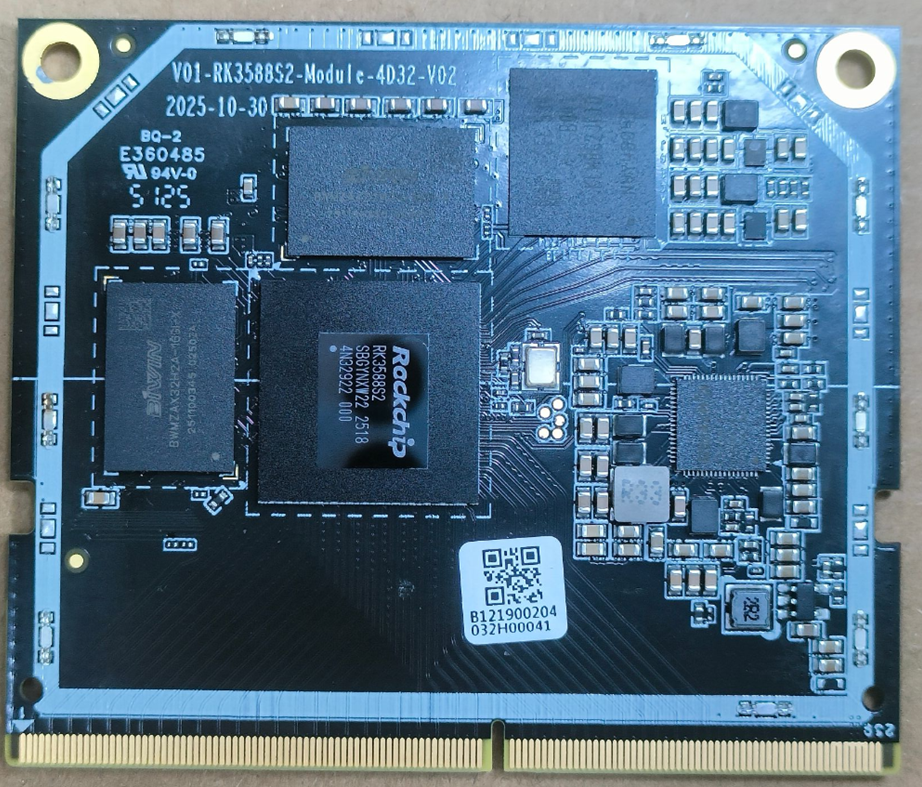

三、产品示意图


四、接口定义

顶层pin脚定义

PIN

PIN  功能1

PIN  功能2

PIN  功能3

备注

1

GND

GND



3

HDMI0_TX_SBDN

HDMI0_TX_SBDN



5

HDMI0_TX_SBDP

HDMI0_TX_SBDP



7

GND

GND



9

HDMI0_TX3N

HDMI0_TX3N



11

HDMI0_TX3P

HDMI0_TX3P



13

GND

GND



15

HDMI0_TX0N

HDMI0_TX0N



17

HDMI0_TX0P_

HDMI0_TX0P_



19

GND

GND



21

HDMI0_TX1N

HDMI0_TX1N



23

HDMI0_TX1P

HDMI0_TX1P



25

GND

GND



27

HDMI0_TX2N

HDMI0_TX2N



29

HDMI0_TX2P

HDMI0_TX2P



31

GND

GND



33

TYPEC0_SBU2

TYPEC0_SBU2



35

TYPEC0_SBU1

TYPEC0_SBU1



37

TYPEC0_SSRX1N

TYPEC0_SSRX1N



39

TYPEC0_SSRX1P

TYPEC0_SSRX1P



41

GND

GND



43

TYPEC0_SSTX1P

DP0_TX1P



45

TYPEC0_SSTX1N

DP0_TX1N



47

GND

GND



49

TYPEC0_SSRX2N

DP0_TX2N



51

TYPEC0_SSRX2P

DP0_TX2P



53

GND

GND



55

TYPEC0_SSTX2P

DP0_TX3P



57

TYPEC0_SSTX2N

DP0_TX3N



59

GND

GND



61

MIPI_DPHY1_TX_D0N

MIPI_CPHY1_TX_TRIO0_A



63

MIPI_DPHY1_TX_D0P

MIPI_CPHY1_TX_TRIO0_B



65

GND

GND



67

MIPI_DPHY1_TX_D1N

MIPI_CPHY1_TX_TRIO0_C



69

MIPI_DPHY1_TX_D1P

MIPI_CPHY1_TX_TRIO1_A



71

GND

GND



73

MIPI_DPHY1_TX_CLKN

MIPI_CPHY1_TX_TRIO1_B



75

MIPI_DPHY1_TX_CLKP

MIPI_CPHY1_TX_TRIO1_C



77

GND

GND



79

MIPI_DPHY1_TX_D2N

MIPI_CPHY1_TX_TRIO2_A



81

MIPI_DPHY1_TX_D2P

MIPI_CPHY1_TX_TRIO2_B



83

GND

GND



85

MIPI_DPHY1_TX_D3N

MIPI_CPHY1_TX_TRIO2_C



87

MIPI_DPHY1_TX_D3P




89

GND

GND



91

MIPI_DPHY1_RX_D0N

MIPI_CPHY1_RX_TRIO0_A



93

MIPI_DPHY1_RX_D0P

MIPI_CPHY1_RX_TRIO0_B



95

MIPI_DPHY1_RX_D1N

MIPI_CPHY1_RX_TRIO0_C



97

MIPI_DPHY1_RX_D1P

MIPI_CPHY1_RX_TRIO1_A



99

GND

GND



101

MIPI_DPHY1_RX_CLKN

MIPI_CPHY1_RX_TRIO1_B



103

MIPI_DPHY1_RX_CLKP

MIPI_CPHY1_RX_TRIO1_C



105


GND

GND



107

MIPI_DPHY1_RX_D2N

MIPI_CPHY1_RX_TRIO2_A



109

MIPI_DPHY1_RX_D2P

MIPI_CPHY1_RX_TRIO2_B



111

MIPI_DPHY1_RX_D3N

MIPI_CPHY1_RX_TRIO2_C



113

MIPI_DPHY1_RX_D3P




115

GND

GND



117

MIPI_DPHY0_TX_D0N

MIPI_CPHY0_TX_TRIO0_A



119

MIPI_DPHY0_TX_D0P

MIPI_CPHY0_TX_TRIO0_B



121

GND

GND



123

MIPI_DPHY0_TX_D1N

MIPI_CPHY0_TX_TRIO0_C



125

MIPI_DPHY0_TX_D1P

MIPI_CPHY0_TX_TRIO1_A



127

GND

GND



129

MIPI_DPHY0_TX_CLKN

MIPI_CPHY0_TX_TRIO1_B



131

MIPI_DPHY0_TX_CLKP

MIPI_CPHY0_TX_TRIO1_C



133

GND

GND



135

MIPI_DPHY0_TX_D2N

MIPI_CPHY0_TX_TRIO2_A



137

MIPI_DPHY0_TX_D2P

MIPI_CPHY0_TX_TRIO2_B



139

GND

GND



141

MIPI_DPHY0_TX_D3N

MIPI_CPHY0_TX_TRIO2_C



143

MIPI_DPHY0_TX_D3P




145

GND

GND



147

MIPI_CSI0_RX_D0N




149

MIPI_CSI0_RX_D0P




151

MIPI_CSI0_RX_D1N




153

MIPI_CSI0_RX_D1P




155

GND

GND



157

MIPI_CSI0_RX_CLK0N




159

MIPI_CSI0_RX_CLK0P




161

GND

GND



163

MIPI_CSI0_RX_D2N




165

MIPI_CSI0_RX_D2P




167

MIPI_CSI0_RX_D3N




169

MIPI_CSI0_RX_D3P




171

GND

GND



173

MIPI_CSI0_RX_CLK1P




175

MIPI_CSI0_RX_CLK1N




177

GND

GND



179

MIPI_CSI1_RX_CLK1P




181

MIPI_CSI1_RX_CLK1N




183

GND

GND



185

MIPI_CSI1_RX_D2N




187

MIPI_CSI1_RX_D2P




189

MIPI_CSI1_RX_D3P




191

MIPI_CSI1_RX_D3N




193

GND

GND



195

MIPI_CSI1_RX_CLK0P




197

MIPI_CSI1_RX_CLK0N




199

GND

GND



201

MIPI_CSI1_RX_D0N




203

MIPI_CSI1_RX_D0P




205

MIPI_CSI1_RX_D1N




207

MIPI_CSI1_RX_D1P




209

GND

GND



211

PCIE20_0_REFCLKP




213

PCIE20_0_REFCLKN




215

GND

GND



217

PCIE20_0_RXN

SATA30_0_RXN



219

PCIE20_0_RXP

SATA30_0_RXP



221

GND

GND



223

PCIE20_0_TXN

SATA30_0_TXN



225

PCIE20_0_TXP

SATA30_0_TXP



227

GND

GND



229

PCIE20_2_REFCLKN




231

PCIE20_2_REFCLKP




233

GND




235

PCIE20_2_TXP

USB30_2_SSTXP

SATA30_2_TXP


237

PCIE20_2_TXN

USB30_2_SSTXN

SATA30_2_TXN


239

GND




241

PCIE20_2_RXP

USB30_2_SSRXP

SATA30_2_RXP


243

PCIE20_2_RXN

USB30_2_SSRXN

SATA30_2_RXN


245

GND

GND



247

GND

GND



249

POWER

4.0V 电源输入



251

POWER

4.0V 电源输入



253

POWER

4.0V 电源输入



255

POWER

4.0V 电源输入



257

GND

GND



259

GND

GND



底层pin脚定义

PIN

P功能1

IO电压

功能2

功能3

功能4

功能5

功能6

功能7

2

GND







GND

4

SDMMC_CLK

1.8V/3.3V

UART5_TX_M0

MCU_JTAG_TMS_M0

PDM1_CLK0_M0

CAN0_RX_M1

TEST_CLKOUT_M0

GPIO4_D5_d

6

SDMMC_CMD

1.8V/3.3V

UART5_RX_M0

MCU_JTAG_TCK_M0

PDM1_CLK1_M0

CAN0_TX_M1

PWM7_IR_M1

GPIO4_D4_u

8

SDMMC_D0

1.8V/3.3V

UART2_TX_M1

JTAG_TCK_M1

PDM1_SDI3_M0

I2C3_SCL_M4

PWM8_M1

GPIO4_D0_u

10

SDMMC_D1

1.8V/3.3V

UART2_RX_M1

JTAG_TMS_M1

PDM1_SDI2_M0

I2C3_SDA_M4

PWM9_M1

GPIO4_D1_u

12

SDMMC_D2

1.8V/3.3V

UART5_CTSN_M0

JTAG_TCK_M0

PDM1_SDI1_M0

I2C8_SCL_M0


GPIO4_D2_u

14

SDMMC_D3

1.8V/3.3V

UART5_RTSN_M0

JTAG_TMS_M0

PDM1_SDI0_M0

I2C8_SDA_M0

PWM10_M1

GPIO4_D3_u

16

GND








18

USB 2.0 Host0 DP








20

USB 2.0 Host0 DM








22

USB 2.0 Host1 DP








24

USB 2.0 Host1 DM








26

GND








28

TYPEC0_OTG_DP








30

TYPEC0_OTG_DM








32

GND








34

ADC_VIN0_BOOT


Maskrom






36

RECOVERY


SARADC_VIN1_KEY






38

SARADC_VIN2








40

SARADC_VIN3








42

PWRON_L


PWRON_L






44

VCC_3V3_S0


3.3V电源输出






46

VCCIO6


VCCIO6 电源输入






48

VCC1V8_PMU_DDR_S3


1.8V电源输出






50

GND








52

GPIO4_A0_d

VCCIO6

CIF_D0

BT1120_D0

PCIE20X1_1_CLKREQN_M1

I2S1_MCLK_M0

UART9_RTSN_M1

SPI0_MISO_M1

54

GPIO4_A1_d

VCCIO6

CIF_D1

BT1120_D1

PCIE20X1_1_WAKEN_M1

I2S1_SCLK_M0

UART9_CTSN_M1

SPI0_MOSI_M1

56

GPIO4_A2_d

VCCIO6

CIF_D2

BT1120_D2

PCIE20X1_1_PERSTN_M1

I2S1_LRCK_M0

SPI0_CLK_M1


58

GPIO4_A3_d

VCCIO6

CIF_D3

BT1120_D3

UART0_TX_M2




60

GPIO4_A4_d

VCCIO6

CIF_D4

BT1120_D4

I2C3_SCL_M2

UART0_RX_M2

SPI2_MISO_M1


62

GPIO4_A5_d

VCCIO6

CIF_D5

BT1120_D5

I2S1_SDI0_M0

I2C3_SDA_M2

UART3_TX_M2

SPI2_MOSI_M1

64

GPIO4_A6_d

VCCIO6

CIF_D6

BT1120_D6

I2S1_SDI1_M0

I2C5_SCL_M2

UART3_RX_M2

SPI2_CLK_M1

66

GPIO4_A7_d

VCCIO6

CIF_D7

BT1120_D7

I2S1_SDI2_M0

I2C5_SDA_M2


SPI2_CS0_M1

68

GPIO4_B0_d

VCCIO6

CIF_CLKIN

BT1120_CLKOUT

I2S1_SDI3_M0

I2C6_SDA_M3

UART8_TX_M0

SPI2_CS1_M1

70

GPIO4_B1_u

VCCIO6

MIPI_CAMERA0_CLK_M0

I2S1_SDO0_M0

I2C6_SCL_M3

UART8_RX_M0

SPI0_CS1_M1

SPDIF1_TX_M1

72

GPIO4_B2_u

VCCIO6

CIF_HREF

BT1120_D8

PCIE20X1_1_BUTTON_RSTN

I2S1_SDO1_M0

I2C7_SCL_M3

UART8_RTSN_M0

74

GPIO4_B3_u

VCCIO6

CIF_VSYNC

BT1120_D9

PCIE20X1_2_BUTTON_RSTN

I2S1_SDO2_M0

I2C7_SDA_M3

UART8_CTSN_M0

76

GPIO4_B4_u

VCCIO6

CIF_CLKOUT

BT1120_D10

SPDIF0_TX_M1

I2S1_SDO3_M0

DP0_HPDIN_M0

UART9_TX_M1

78

GPIO4_B5_u

VCCIO6

BT1120_D11

SPI3_MISO_M1

PWM12_M1



UART9_RX_M1

80

GPIO4_B6_u

VCCIO6

BT1120_D12

SPI3_MOSI_M1

PWM13_M1

I2C5_SCL_M1

SATA0_ACT_LED_M0


82

GPIO4_B7_u

VCCIO6

BT1120_D13

SPI3_CLK_M1

HDMI_TX0_SCL_M0

I2C5_SDA_M1



84

GPIO4_C0_u

VCCIO6

BT1120_D14

SPI3_CS0_M1

HDMI_TX0_SDA_M0

I2C8_SCL_M3



86

GPIO4_C1_d

VCCIO6

BT1120_D15

SPI3_CS1_M1

HDMI_TX0_CEC_M0

I2C8_SDA_M3

PWM6_M1

SPDIF1_TX_M2

88

GND







GND

90

ADC_DET

1.8V

GPIO3_D1_d

CIF_D13

SPI0_MISO_M3


UART4_TX_M1

PCIE20X1_2_PERSTN_M0

92

ACC_Det

1.8V

GPIO3_C7_u

CIF_D11

SPI3_MOSI_M3

I2C5_SCL_M0


PCIE20X1_2_CLKREQN_M0

94

MFI_RST

1.8V

GPIO3_C6_u

CIF_D10

SPI3_MISO_M3




96

USB_SW

1.8V

GPIO3_D0_u

CIF_D12

SPI3_CLK_M3

I2C5_SDA_M0

UART4_RX_M1

PCIE20X1_2_WAKEN_M0

98

Uart5_TX_M1

1.8V

GPIO3_C4_u

CIF_D8

SPI3_CS0_M3

FSPI_CS0N_M2

UART5_TX_M1

CAN2_RX_M0

100

Uart5_RX_M1

1.8V

GPIO3_C5_u

CIF_D9

SPI3_CS1_M3

FSPI_CS1N_M2

UART5_RX_M1

CAN2_TX_M0
